Rosslare Security Products

Access Control Keypads

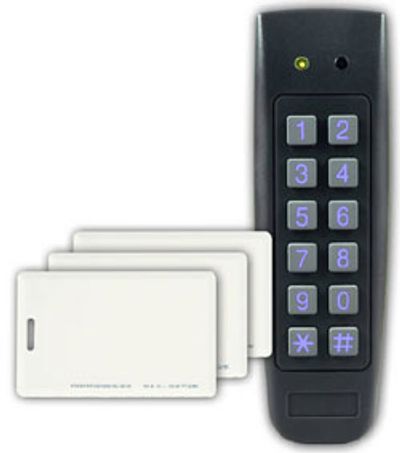

AYCG64

An Indoor/Outdoor PIN Mullion 2x6 Reader with Red or Blue backlit keys for applications with frequent night time traffic and dark difficult visibility, in residential, commercial, and indoor Industrial applications.


Product Description:

· Multi-format Output (Wiegand 26-BIT, Clock & Data, RS-232)

· 2 Bi-Color LED indicators

· Internal buzzer

· LED control input.

· Fully Potted

· Rated IP65 - Rugged and Water-resistant

· Optical Back Tamper

· Read range: 100 mm (3.94 in.)

· 6-Wire Interface (6 Colors / Label on Back Of Unit), 0.6 meters (24 in.) length AYF64

An Indoor/Outdoor 3x4 PIN+Prox (125 kHz RFID) Reader with Red or Blue backlit keys for applications with frequent night time traffic and dark difficult visibility, in residential, commercial, and indoor Industrial applications.


Product Description:

· 125KHz RFID Card / Tag Reader Unit

· Multi-format Output (Wiegand 26-BIT, Clock & Data, RS-232)

· 2 Bi-Color LED indicators

· Internal buzzer

· LED control input.

· Fully Potted

· Rated IP65 - Rugged and Water-resistant

· Optical Back Tamper

· Read range: 100 mm (3.94 in.)

· 6-Wire Interface (6 Colors / Label on Back Of Unit), 0.6 meters (24 in.) length



AC-115 Single Door Access Control Controllers

AC115

1-to-8 Door Networked Controllers

The AC-115 Networkable Controller supports up to 2 Wiegand 26-Bit Readers (IN/OUT), Access Control for 2400 users with optional RS-232 Real-time PC monitoring and reporting software.


AC-115

1-to-8 Door networkable controller networks up to 8 controllers using a 4-Wire RS-485 BUS. 2 Bi-Color LEDs Menu. Built-in Bell / Alarm Sounder for Events and Chime. Ingrated power supply with backup battery charger. Built-in Door Monitor and 5 Amp Lock Strike output, 1 Amp Aux. output and REX input. Supports ; Supports PIN or PIN+PROX, or PROX credentials; includes 3 security levels, 2000 event history / Case Tamper. Meets ETSI, CE Standards. Lifetime Warranty.


Product Features:

A networkable Controller with the capability to handle up to 8-doors, and 2400 Users. This unit comes with PC application for system management and configuration.

Product Description:

· Supports up to 2 Wiegand 26-Bit Readers (IN/OUT), Access Control for 2400 users with optional RS-232 Real-time PC monitoring and reporting software. Full Off-Line and On-Line operation.

· Networkable up to 8 controllers using a 4-Wire RS-485 BUS. 2 Bi-Color LEDs Menu. Built-in Bell / Alarm Sounder for Events and Chime. Ingrated power supply with backup battery charger. Built-in Door Monitor and 5 Amp Lock Strike output, 1 Amp Aux. output and REX input. Supports ; Supports PIN or PIN+PROX, or PROX credentials; includes 3 security levels, 2000 event history / Case Tamper.


· Includes AS-115 PC Software installation CD-Rom 8-Door Network Access Control Software. Built-in multiple language support. For PC running on Microsoft® Windows® 98, Me, NT, 2000 and XP operating Systems.


· Real-Time PC Software with custom User Database, Reports, Codes and Photograph, Live Action Display.


NOTE: REL-MD14 Convertor cable is required to connect the RS-485 BUS network to an RS-232 PC port.


Rosslare AC-115 Single Door Access Control Controller

Rosslare AC-115 Single Door Access Control Controller

AC-215 Multi Door Access Control System Controller

AC215

512-Door Networkable Access Control Unit

Advanced Multi-Door Networked Access Control Unit (ACU), Modular One- or Two-Door (2-Reader IN/OUT, IN/IN) topology. Full online/offline operation with 10,000 history event log in each ACU. Supports 5000 Users, 20,000 Non-Access User. System management performed on PC server application with client/server operator access.


AC-215

Each AC-215 ACU supports 2 Readers with either Wiegand 26-Bit or Clock and Data, or Rosslare reader formats (to support Bell/Chime button), with 4 inputs (REX / monitor), and 4 Form C relay outputs. 8 LEDs show status of outputs, communications flow, and power, and on-board quick release terminal blocks. Meets ETSI, CE Standards. Lifetime Warranty.


Product Features:

Full online/offline operation with 10,000 history event log in each ACU. Supports 5000 Users, 20,000 Non-Access User. System management performed on PC server application with client/server operator access.

Product Description:

· Each ACU supports 2 Readers with either Wiegand 26-Bit or Clock and Data, or

Rosslare reader formats (to support Bell/Chime button), with 4 inputs (REX / monitor), and 4 Form C relay outputs. 8 LEDs show status of outputs, communications flow, and power, and on-board quick release terminal blocks.


· PC local network: up to 32 ACUs (64 doors) per PC COM port, expandable up 256 ACUs/512 doors, with optional 8-port combination PC card.


· Modem remote network: supports remote subnets using required MD-N33 PSTN external modem pairs.


· TCP/IP remote network: supports connection to remote subnets over a TCP/IP Network with required MD-N32 TCP/IP Gateway.


· AC-215 ACU set, with a metal lockable enclosure (w/ 2 keys), including power supply PCB with backup battery charger, localized transformer, and internal bell/siren speaker. Includes CD-ROM with AS-215 Level 0 software license.


NOTE: REL-MD14 Convertor cable is required to connect the RS-485 BUS network to an RS-232 PC port.


Rosslare AC-215 Access Control 2 door Controller

Rosslare AC-215 Access Control 2 door Controller
